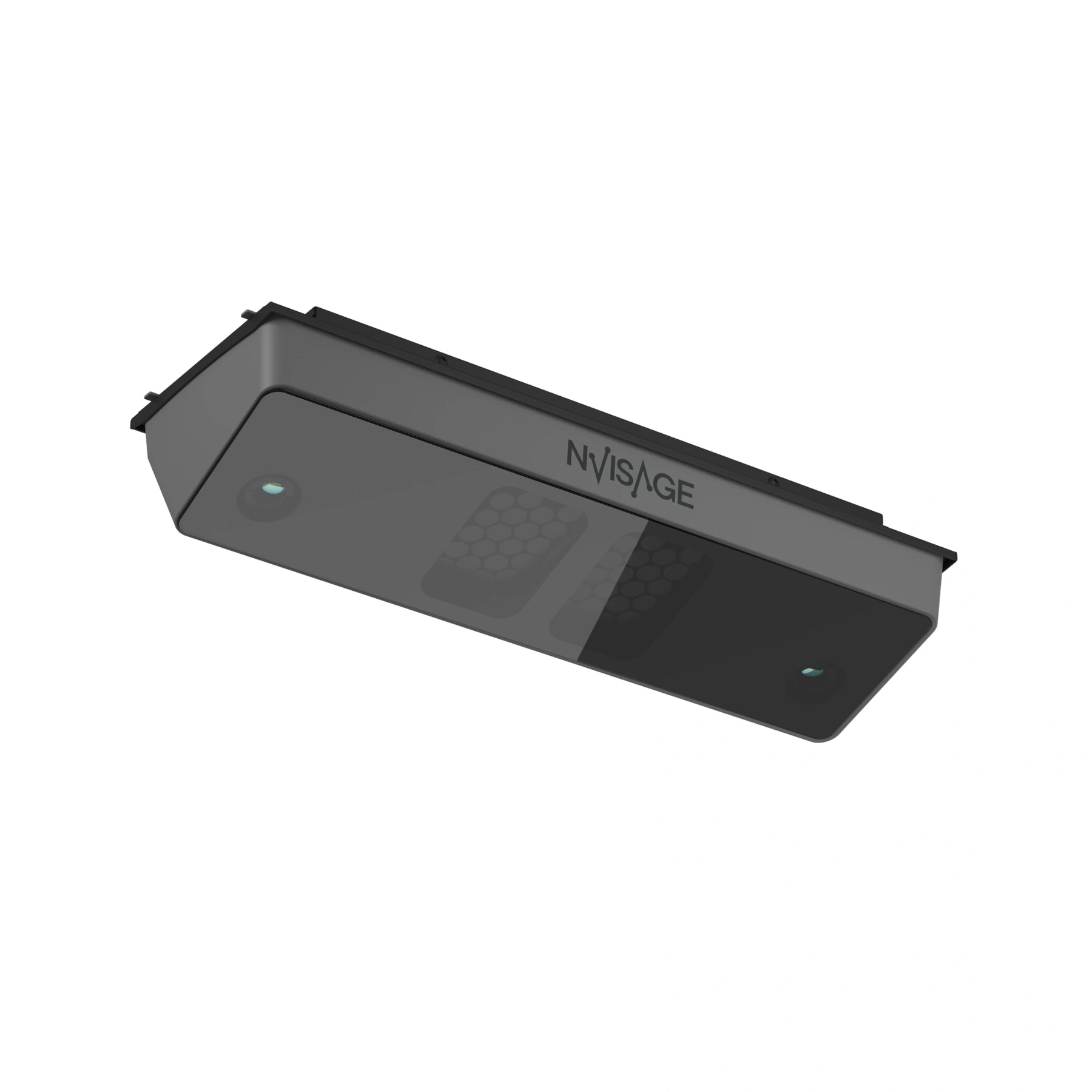

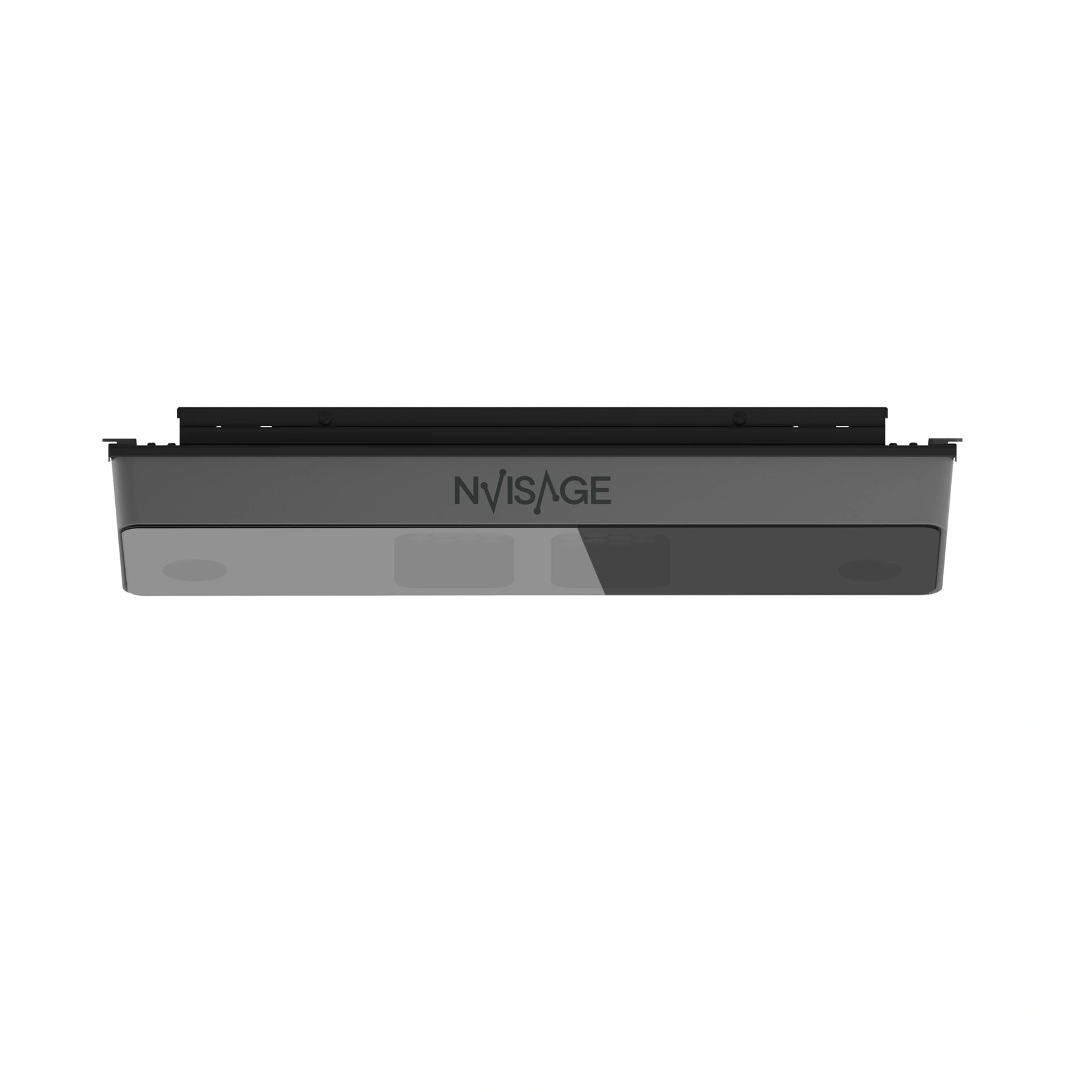

Meet the NVISAGE N1 Overhead Launch Monitor
The NVISAGE N1 is an overhead golf launch monitor designed for dedicated indoor golf simulator setups. Mounted above the hitting area, it keeps the floor clear while capturing the essential ball flight and spin data needed for practice and simulator play.

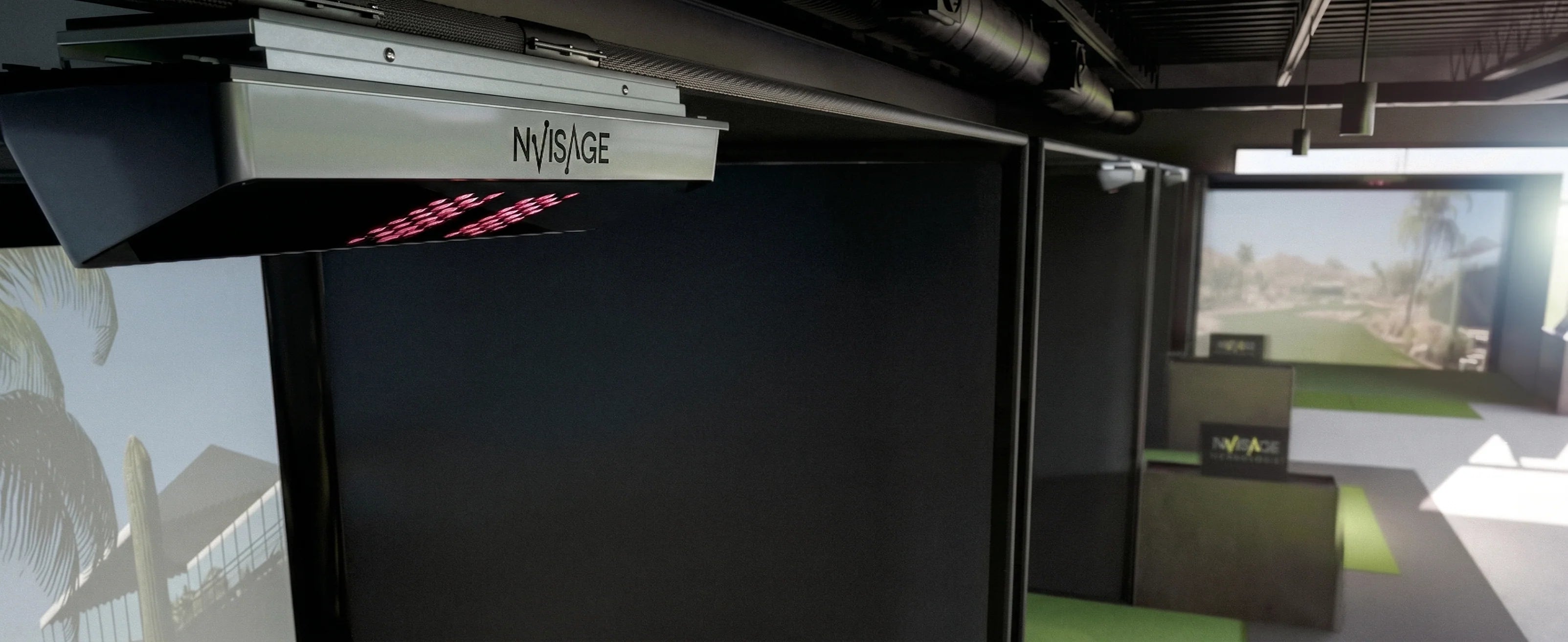

With dual high-speed cameras, compatibility with leading golf simulator software and a permanent overhead installation, the N1 is a practical option for home golf simulators and commercial indoor golf spaces.
OVERHEAD DESIGN
Permanently mounted above the hitting area to keep your golf simulator floor clear.
DUAL HIGH-SPEED CAMERAS
Dual ultra-high-speed cameras capture ball launch, spin and flight information.
LEFT + RIGHT HANDED
The overhead position allows different golfers to hit without moving a floor-mounted unit.
GOLF SIMULATOR READY
Compatible with popular simulator platforms including GSPro and E6 Connect.

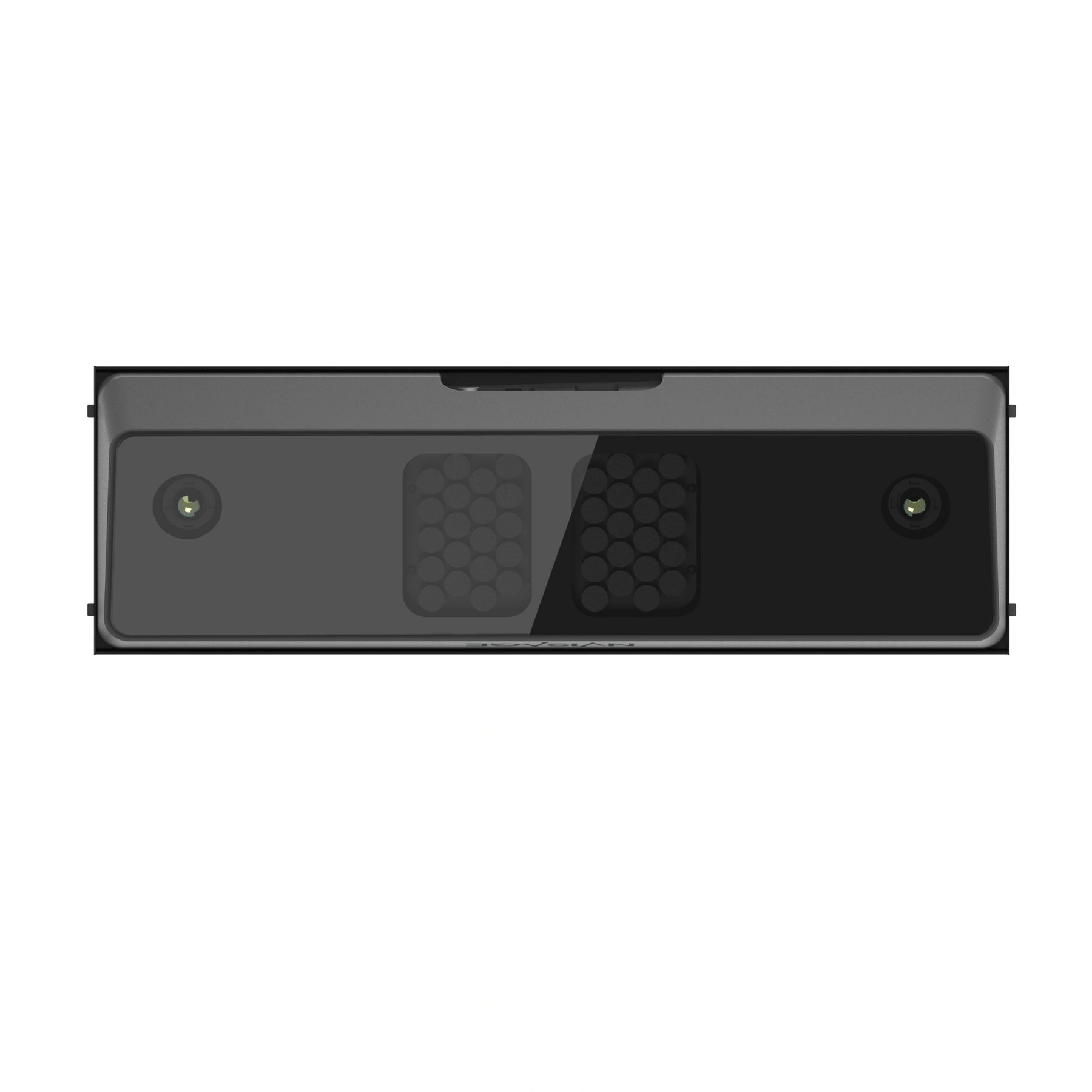

Dual High-Speed Camera Tracking
The NVISAGE N1 uses a dual-camera optical tracking system positioned directly above the hitting area to capture the movement of the golf ball immediately after impact.
Its two ultra-high-speed cameras operate at up to 2,000 FPS, allowing the N1 to analyse key launch and spin characteristics for indoor golf practice and simulation.
2,000 FPS
Ultra-high-speed camera capture
2 Cameras
Overhead optical tracking
N1 DETAILS
N1 Specifications & Data
Specifications
Launch Monitor Type
Overhead Camera
Tracking System
Dual Camera
Camera Speed
Up to 2,000 FPS
Installation
Overhead Mounted
Ball Requirement
NVISAGE Marked Balls

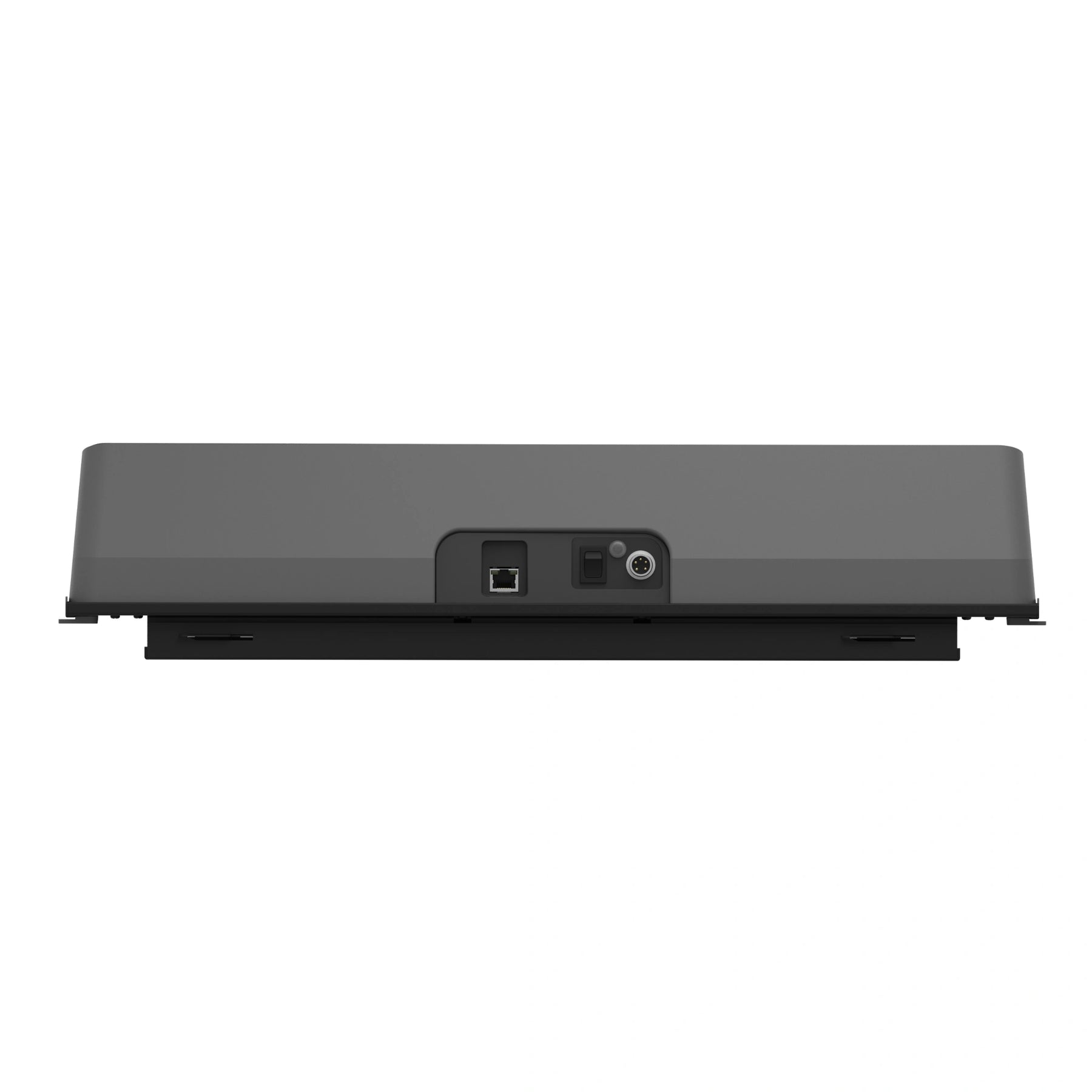

Connection
Wired Ethernet
Indoor Golf
✓
Left + Right Handed
✓
Setup + Software
Mounting Height
Approx. 2.74–3.05m
Position
Approx. 61cm Forward
Calibration
Calibration Board
GSPro
✓
E6 Connect
✓
NVISAGE Software
✓
Ball + Flight Data
Ball Speed
✓
Carry Distance
✓
Vertical Launch Angle
✓
Horizontal Launch Angle
✓
Back Spin
✓
Side Spin
✓
Spin Axis
✓
Total Spin
✓
What's Included
N1 Launch Monitor
✓
Calibration Board
✓
Power Adapter + Cable
✓
Ethernet Cable
✓
Ethernet to USB 3.0 Adapter
✓
Mounting Screws
✓
Level
✓
12 Marked Golf Balls
✓

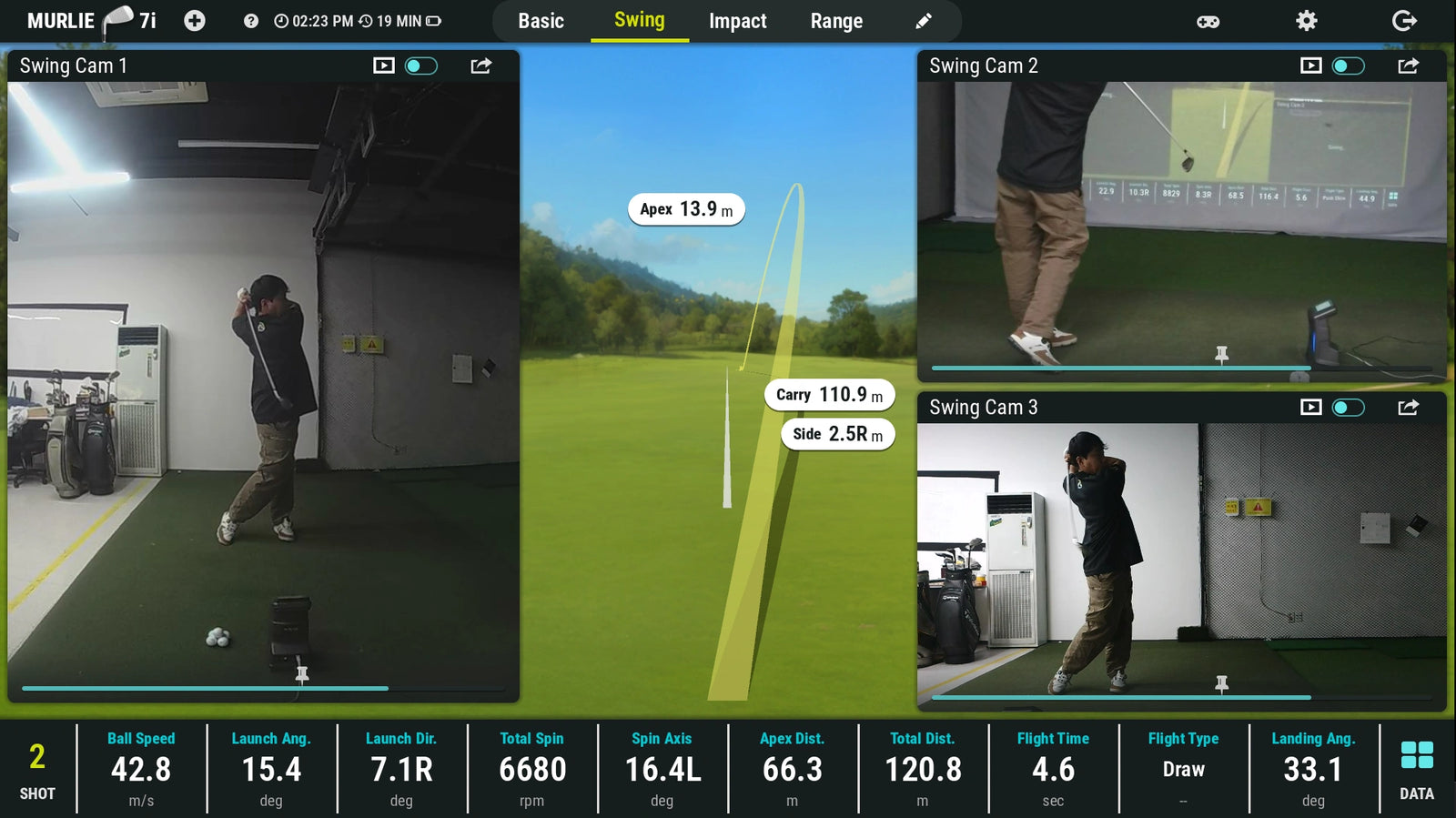

Practice with MURLIE
MURLIE is NVISAGE's own golf practice and analysis software, designed to turn launch monitor data into a more useful practice experience.
The current software includes Shot Analysis and Driving Range functionality, while MURLIE-X adds complimentary course play with 20 included games.
SHOT ANALYSIS
Analyse and record shot data to better understand your golf performance.
DRIVING RANGE
Practise in a virtual range environment using the N1's captured shot data.
MURLIE-X
NVISAGE currently provides 20 complimentary course-play games through MURLIE-X.
USB CAMERA SUPPORT
NVISAGE also promotes multi-view USB camera integration within its latest MURLIE platform.
N1 FAQ
Frequently Asked Questions
What is the NVISAGE N1?
The NVISAGE N1 is an overhead camera-based golf launch monitor designed for dedicated indoor golf simulator setups. It mounts above the hitting area and uses dual high-speed cameras to capture key ball launch and spin data.
Does the NVISAGE N1 work with GSPro?
Yes. The NVISAGE N1 is compatible with GSPro for virtual golf, practice and full-course golf simulator play. A separate GSPro licence or subscription may be required.
Does the N1 work with E6 Connect?
Yes. The N1 also supports E6 Connect, giving users another option for golf simulator course play, practice ranges and game modes. E6 licensing is sold separately.
Does the NVISAGE N1 require marked golf balls?
Yes. The N1 uses NVISAGE marked golf balls for tracking. The unit includes 12 marked golf balls for setup and use.
Can left- and right-handed golfers use the N1?
Yes. Because the N1 is mounted overhead, it does not need to be moved when switching between left- and right-handed golfers, making it well suited to shared home and commercial golf simulator setups.
How high should the NVISAGE N1 be mounted?
NVISAGE recommends mounting the N1 approximately 2.74–3.05m (9–10ft) above the hitting surface.
Where should the N1 be positioned?
NVISAGE recommends positioning the N1 approximately 61cm (2ft) toward the impact screen from the hitting area.
Does the N1 need to be calibrated?
Yes. The N1 should be calibrated during initial installation using the supplied calibration board. Recalibration may also be required if the unit is moved or its mounting position changes.
How does the N1 connect to a golf simulator PC?
The N1 uses a wired Ethernet connection. An Ethernet cable and Ethernet-to-USB 3.0 adapter are included with the launch monitor.
What data does the NVISAGE N1 measure?
The N1 captures key golf ball and launch data including ball speed, launch angle, horizontal launch angle, total spin, back spin, side spin and spin axis. Club speed is also supported.

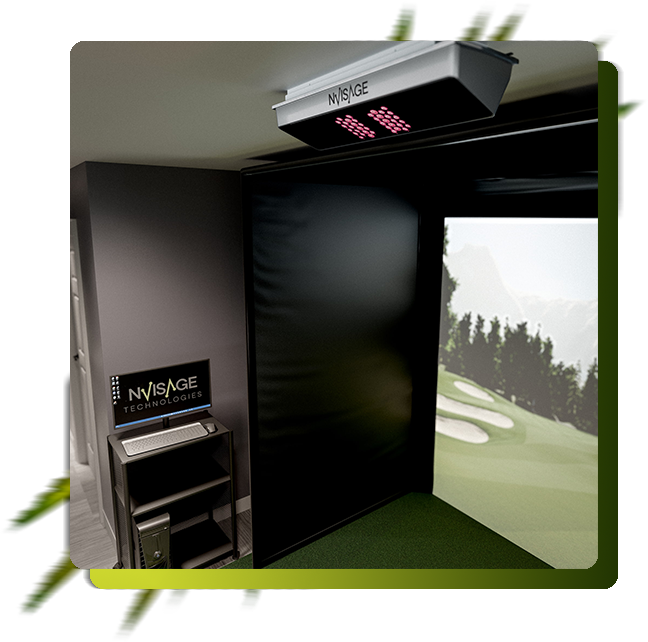

Is the NVISAGE N1 suitable for a home golf simulator?
Yes. The overhead design makes the N1 particularly well suited to dedicated home golf simulator rooms because the launch monitor remains permanently mounted above the hitting area.
