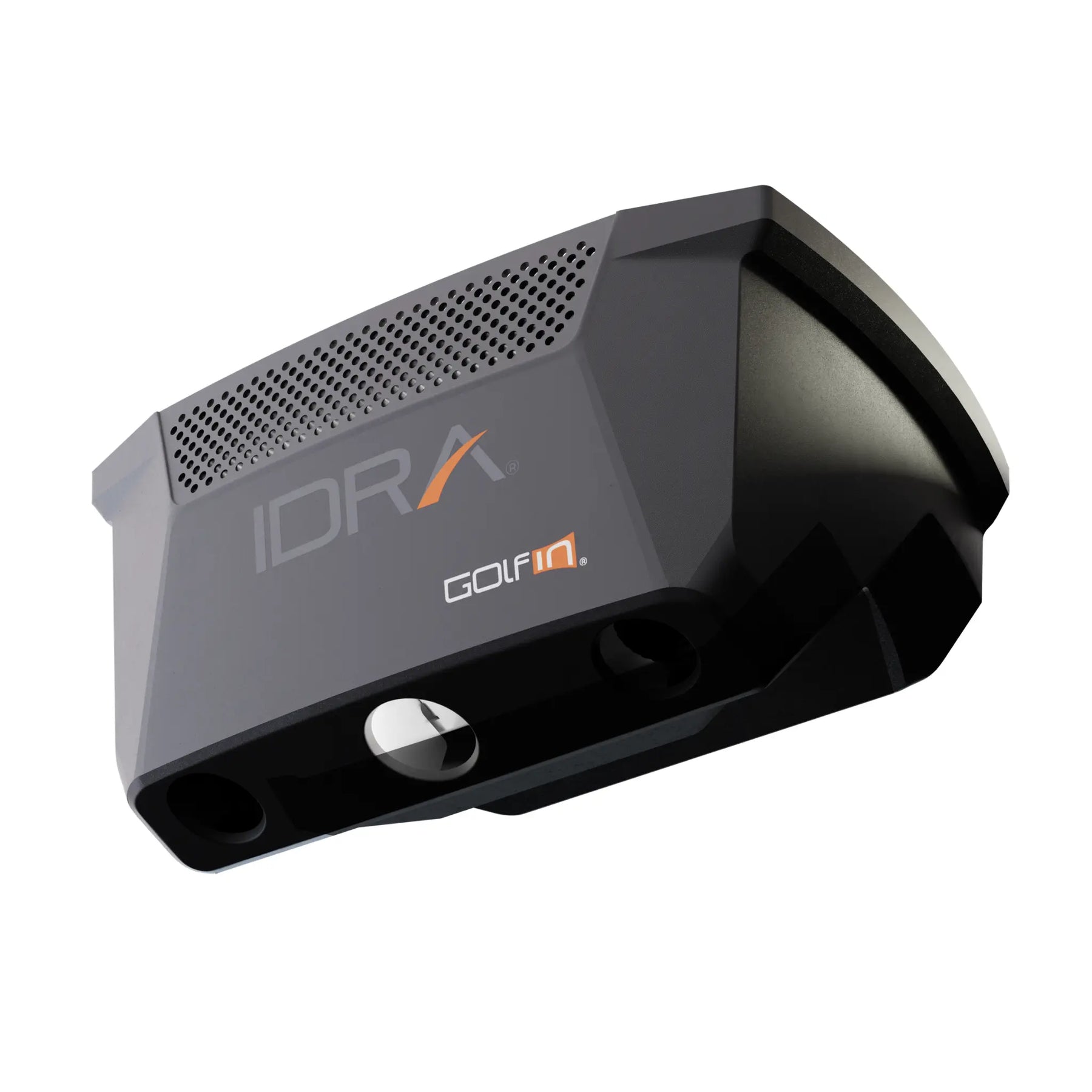

Meet the IDRA II
An overhead launch monitor designed specifically for indoor golf simulation. The IDRA II uses an AI high-speed camera-based system with stereoscopic vision technology to capture detailed ball and club information while keeping the technology completely above the hitting area.
01

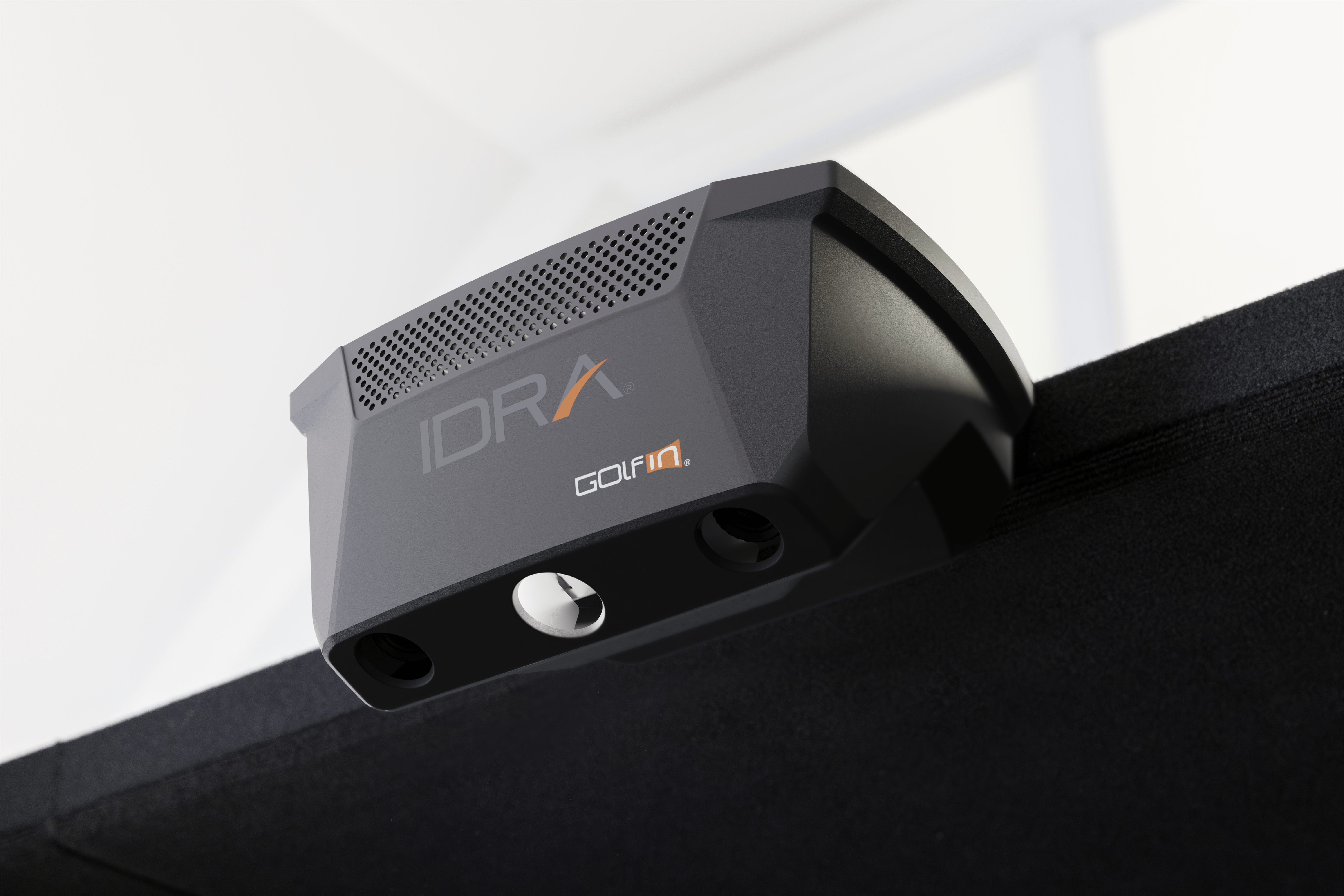

Overhead Design
Installed above the hitting area, keeping the floor clear and the launch monitor out of the way while you play.
02
High-Speed Camera System
Uses high-speed cameras and stereoscopic vision technology to capture detailed information from every shot.
03
No Markers Required
Use your own clubs and golf balls without adding reflective club markers or using specially marked balls.
04
Full-Game Tracking
Designed to capture full shots, short-game performance and putting for a more complete simulator experience.
Shot Analysis + Swing Replay
Go beyond the numbers with IDRA II's graphic shot analyser and swing video replay. Review your shot information alongside visual feedback to better understand what happened through the swing and resulting ball flight.

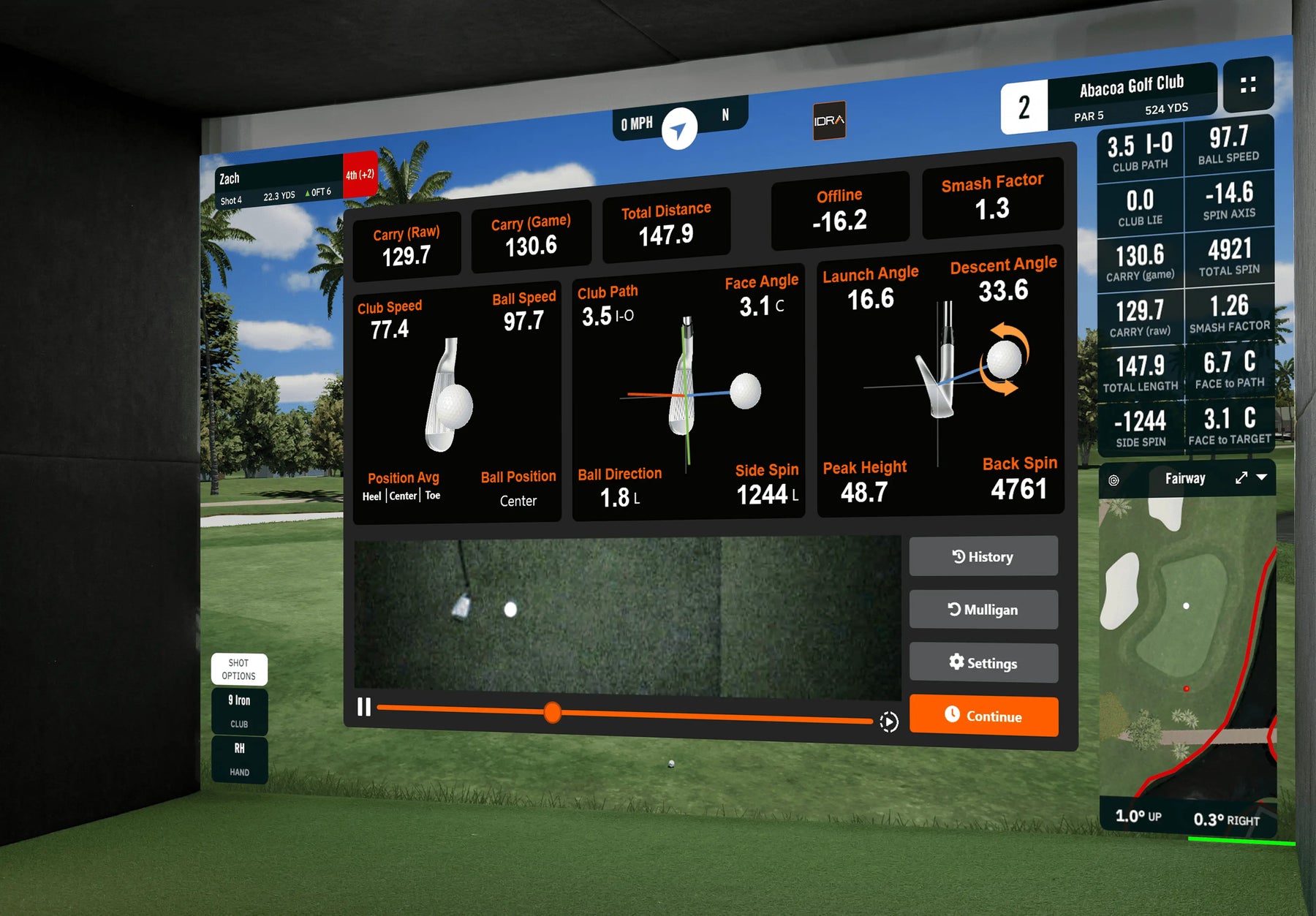

Graphic Shot Analyser
View detailed shot information in a clear visual format to help understand your performance.
Swing Video Replay
Review your swing alongside the data from your shot for an additional layer of feedback during practice.
IDRA II DETAILS
IDRA II Specifications & Data
Key dimensions, installation requirements and measured ball and club data.
Specifications
System
AI High-Speed Camera-Based
Vision Technology
Stereoscopic Vision
Hitting Zone
81 × 46cm
32" × 18"
32" × 18"
Width
33.8cm
13 5/16"
13 5/16"
Height
18.4cm
7 1/4"
7 1/4"
Depth
24.5cm
9 5/8"
9 5/8"
Weight
6.35kg
14.4lb
14.4lb
Warranty
2 Years
Installation + Software
Installation
Overhead
Camera Height
2.51–3.05m
99"–120"
99"–120"
Calibration
One-Time
Integrated Light
✓
Marked Balls
Not Required
Club Markers
Not Required
GSPro
✓
E6 Connect
✓
Ball Flight Data
Carry (Game)✓
Carry (Raw)✓
Total Distance✓
Ball Direction✓
Ball Deviation✓
Ball Speed✓
Launch Angle✓
Peak Height✓
Descent Angle✓
Side Spin✓
Back Spin✓
Spin Axis✓
Club Data
Club Face to Target✓
Club Face to Path✓
Club Face V Impact✓
Club Speed✓
Club Path✓
Smash Factor✓

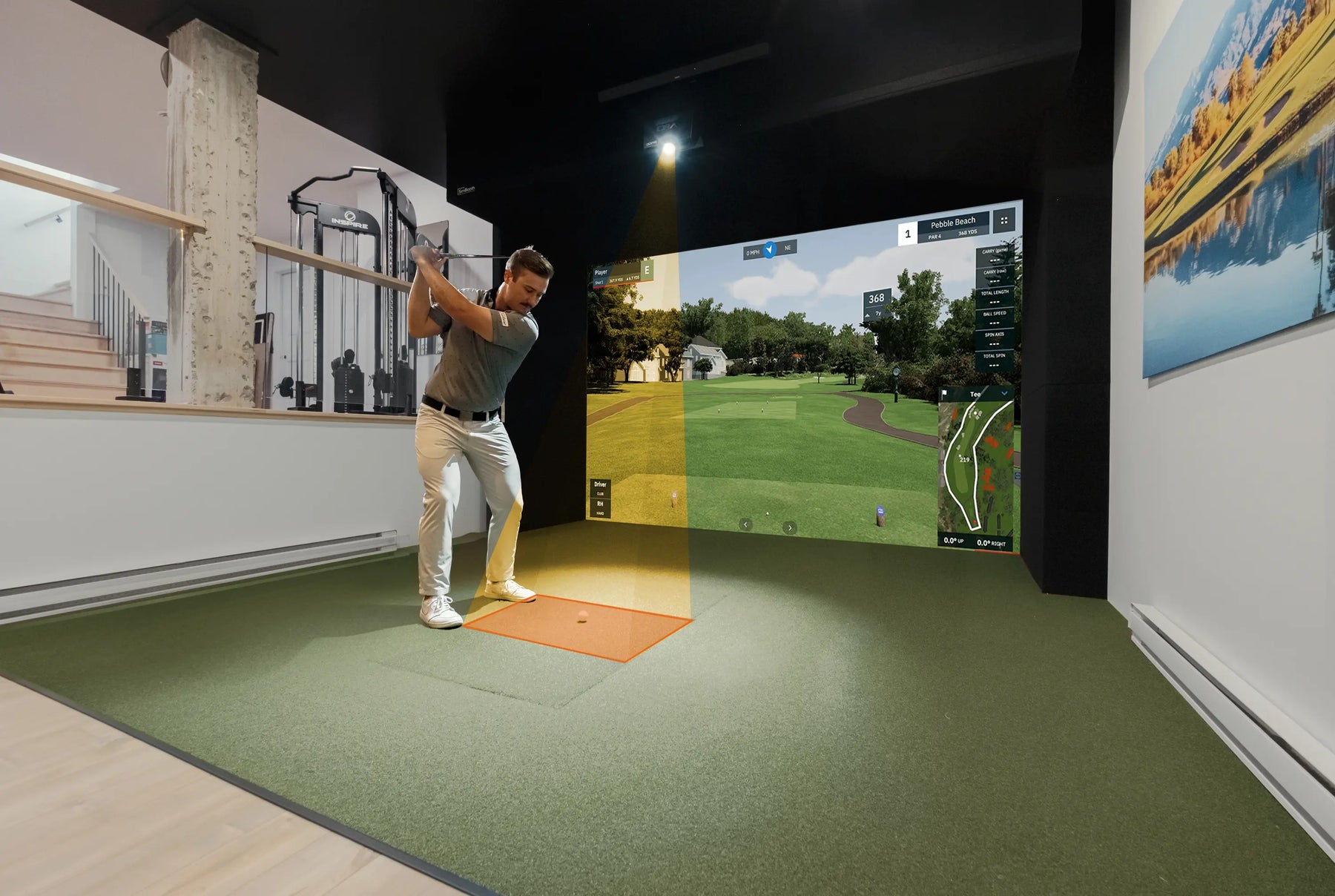

Made for Dedicated Golf Simulators
With the IDRA II installed overhead, your hitting area stays clear. There's no launch monitor sitting beside the ball, no floor-mounted unit taking up hitting space and no need to reposition the device between shots.

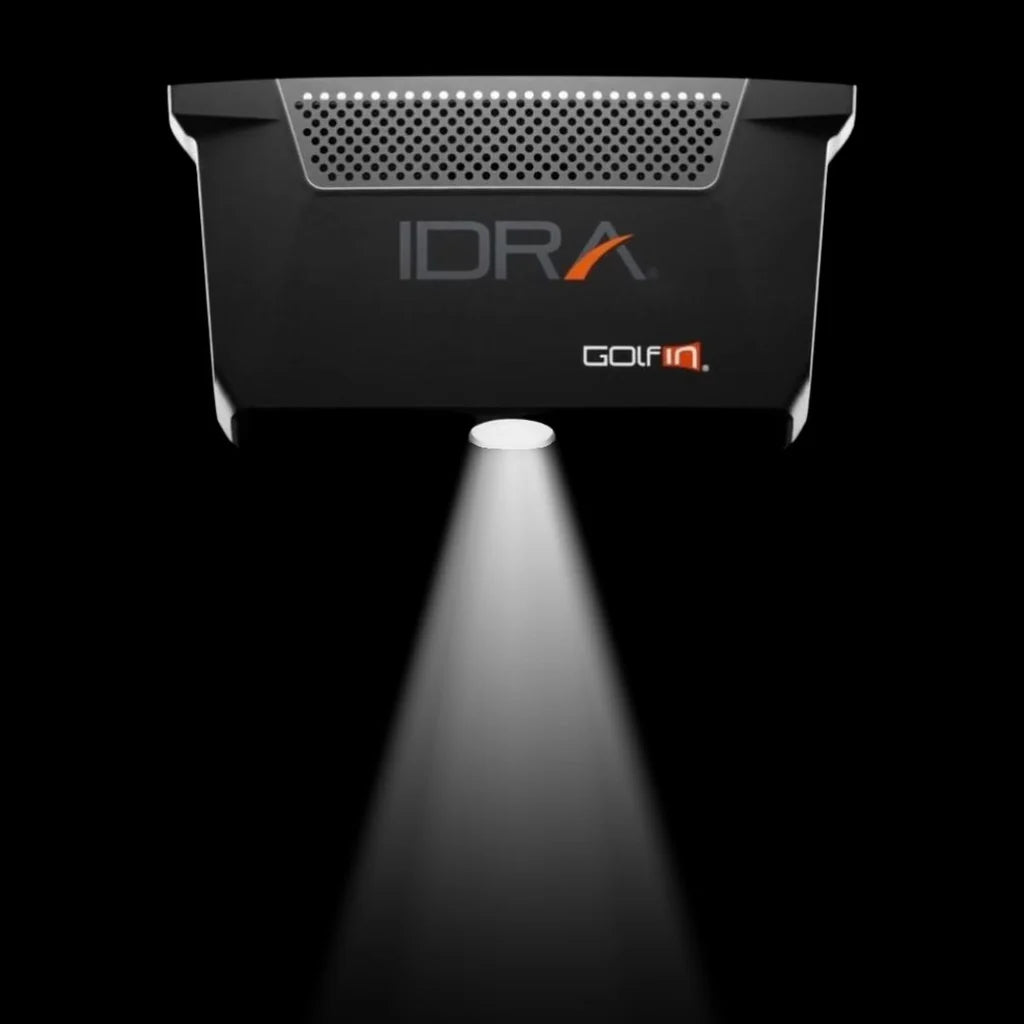

Integrated Lighting
Built-in lighting maintains visibility across the hitting zone for reliable tracking.
One-Time Calibration
The IDRA II is designed around a one-time calibration process as part of the initial installation and setup.
Marker-Free Setup
No reflective club markers or specially marked golf balls are required for normal use.
2-Year Warranty
Backed by a two-year manufacturer warranty for additional peace of mind.
FREQUENTLY ASKED QUESTIONS
IDRA II FAQs
Everything you need to know about installing, connecting and using the GolfIn IDRA II in your golf simulator.
Does the IDRA II work with GSPro?
Yes. The IDRA II supports GSPro, making it a great option for golfers wanting an overhead launch monitor for a GSPro simulator setup. E6 Connect is also supported.
Does the IDRA II require marked golf balls?
No. The IDRA II does not require specially marked golf balls. You can use your own standard golf balls without adding markings for tracking.
Do I need reflective stickers or markers on my clubs?
No. Reflective club dots or markers are not required. The IDRA II is designed to track club data without requiring you to modify your clubs.
What ball data does the IDRA II measure?
The IDRA II provides a detailed range of ball flight information including Carry, Total Distance, Ball Direction, Ball Deviation, Ball Speed, Launch Angle, Peak Height, Descent Angle, Side Spin, Back Spin and Spin Axis.
What club data does the IDRA II measure?
Club measurements include Club Face to Target, Club Face to Path, Club Face Vertical Impact, Club Speed, Club Path and Smash Factor.
How large is the IDRA II hitting zone?
The IDRA II has a generous 81cm wide × 46cm deep (32" × 18") hitting zone. This provides plenty of room to position the ball naturally within the tracking area.
How high does the IDRA II need to be mounted?
GolfIn specifies a camera mounting height between approximately 2.51m and 3.05m (99"–120"). The correct ball-to-camera position also changes depending on the installation height, so the installation specifications should be checked when planning your simulator.
Where does the ball need to be positioned?
The correct ball position depends on the height of the IDRA II. GolfIn specifies a ball-to-camera position ranging from approximately 1.30m to 1.55m (51"–61") depending on camera height. Refer to the installation guide when positioning the unit.
Does the IDRA II work for both right and left-handed golfers?
The IDRA II is mounted overhead above the hitting area rather than beside the golf ball. This means there is no floor-mounted launch monitor that needs to be moved from one side of the hitting area to the other when changing golfers.
Can the IDRA II track putting and short-game shots?
Yes. GolfIn specifically designed the IDRA II to provide short-game and putting tracking alongside full-shot ball and club data, making it suitable for complete golf simulator play.
Does the IDRA II need to be calibrated?
Yes. The IDRA II requires calibration as part of the initial installation. GolfIn describes this as a one-time calibration, rather than something that needs to be completed before every session.
Does the IDRA II have a built-in light?
Yes. The IDRA II includes an integrated light designed to provide visibility across the hitting zone.
What comes with the IDRA II?
GolfIn's current technical documentation lists the IDRA II camera, calibration board and ceiling mounting hardware among the supplied components. Included accessories can vary by region, so the Australian package contents shown on this product page should be used as the final reference for your order.
What PC do I need for GSPro with the IDRA II?
GolfIn specifies an Intel i7 10th generation processor or newer with at least 16 logical processors, an NVIDIA GeForce RTX 20 Series GPU or better, at least 512GB storage, two USB 3.0 ports and high-speed internet for GSPro. GolfIn recommends a higher specification for the best experience, including an RTX 40 Series GPU and 32GB RAM.
Can I use an AMD processor?
GolfIn's current IDRA II technical guide specifically states that AMD processors are not supported. We recommend following GolfIn's published PC requirements when selecting a simulator PC for the IDRA II.
Can I use a USB extension cable with the IDRA II?
GolfIn advises not to use a USB cable extension between the simulator PC and the IDRA II camera. Two USB 3.0 ports are required according to the current technical guide.
Does the IDRA II come with a warranty?
Yes. GolfIn provides a 2-year manufacturer warranty with the IDRA II.
