Golf Simulator Projector Throw Ratio & Keystone Correction Explained

Resolution and brightness get most of the attention when people shop for a golf simulator projector, but a handful of far less glamorous specs, throw ratio, keystone correction, four-corner correction, and lens shift, are what actually determine whether the projector will physically work in your room. Get these wrong and you can end up with a distorted image, a projector you can't mount where you need to, or a picture that simply doesn't fit your screen.

This guide explains each of these specs in plain terms, compares which alignment features each current BenQ and Optoma model actually offers, looks at the difference between each brand's projection calculator, and finishes with a step-by-step method for getting the image sized pixel-perfect against your impact screen using Nvidia Control Panel.

In this guide: Throw ratio · Keystone correction · Lens shift vs keystone · Features by model · Calculators · Nvidia custom resolution · Planning your mount · FAQ

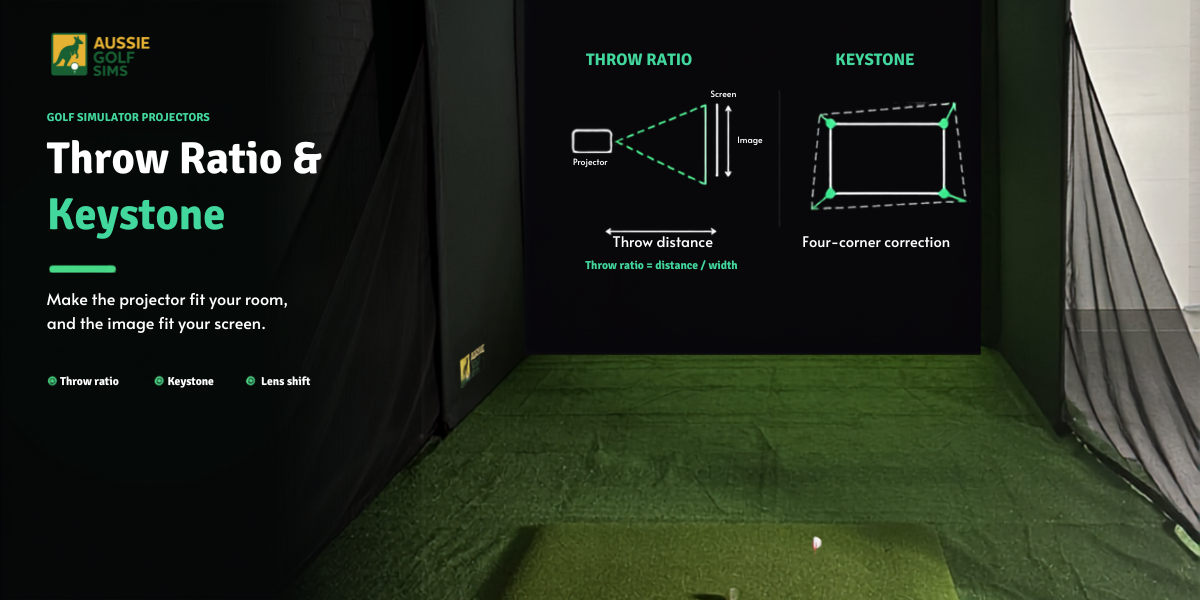

What Is Throw Ratio?

Throw ratio describes the relationship between how far a projector is mounted from the screen and how wide the resulting image is. It's usually written as a ratio, like 0.5:1 or 0.8:1.

The formula is simple: throw distance ÷ image width = throw ratio.

A lower throw ratio means the projector can sit closer to the screen and still fill it with a large image. A higher throw ratio means the projector needs to be mounted further back to achieve the same image size.

For example, a projector with a 0.5:1 throw ratio only needs to be roughly half a metre away to produce a 1 metre wide image. A projector with a 0.85:1 throw ratio would need to sit about 0.85 metres away for that same 1 metre wide image.

Why Short Throw Projectors Are Standard for Golf Simulators

Almost every projector built or marketed specifically for golf simulators is a short throw model, generally sitting somewhere between 0.49:1 and 0.9:1. This is a deliberate design choice. Golf simulator footprints are typically only 4 to 6 metres deep, and that depth has to accommodate the hitting area, the swing zone behind the golfer, and enough space between the projector and the screen for the image to form. A standard-throw home theatre projector, often with a throw ratio of 1.5:1 or higher, simply won't produce a large enough image in that kind of confined depth.

Short throw models solve this by using specially designed lenses that spread the image wider over a shorter distance, letting you mount the projector close to the screen (often just above and slightly behind the hitting area) rather than far back in the room.

How to Calculate Roughly How Far Back You Need to Mount

Before getting into the maths, each projector brand has its own distance calculator for your desired image size, but for those who like to get into the nitty gritty, take the throw ratio of the projector you're considering and multiply it by your desired image width (not diagonal screen size, width specifically) to get an approximate mounting distance.

For example, if you want a 3 metre wide image and you're looking at a projector with a 0.6:1 throw ratio, you'd need roughly 1.8 metres between the projector and the screen (0.6 x 3 = 1.8). This is a useful ballpark for planning your bay, though as covered below, we'd always recommend running your exact numbers through the manufacturer's official calculator, and then fine tuning the result on screen once it's mounted.

What Is Keystone Correction?

Keystone correction is a digital adjustment that squares up a projected image when the projector isn't mounted perfectly level and centred relative to the screen. Without it, an off centre or angled projector produces a trapezoid shaped image instead of a clean rectangle, wider at one edge than the other.

There are several distinct types of correction available across current models, and the difference between them matters a lot more than most buyers realise.

Vertical Keystone

Vertical keystone corrects distortion caused by the projector being mounted too high or too low relative to the centre of the screen, which is extremely common in golf simulator installs since projectors are almost always ceiling-mounted, well above the screen's centre line. Vertical keystone is standard across virtually every golf simulator projector on the market.

Horizontal Keystone

Horizontal keystone corrects distortion caused by the projector being mounted off to one side rather than directly in line with the centre of the screen. This is the spec that catches people out, because not every projector has it.

Four-Corner Correction

Four-corner correction goes a step further than standard vertical and horizontal keystone. Rather than adjusting the whole image on a single vertical or horizontal axis, it lets you drag each of the four corners of the image independently, which is particularly useful for squaring up an image on a screen that isn't perfectly flat, or where the projector is slightly twisted relative to the screen rather than simply offset up, down, left, or right. It's a more granular tool than basic keystone and is generally found on mid-range and higher models rather than entry-level units. Both the Optoma ZK431ST and Optoma GT2160HDR include four-corner (or four-corner-style geometric) correction, and the BenQ LH830ST includes a similar feature BenQ calls Corner Fit.

Lens Shift vs Keystone vs Four-Corner Correction: What's the Difference?

It's worth distinguishing these three tools clearly, since some higher-end projectors offer more than one:

• Keystone correction (vertical and horizontal) is a digital, software based adjustment. It electronically warps the image to appear square, which can very slightly soften image quality at extreme correction angles.
• Four-corner correction is also digital, but gives independent control over each corner rather than adjusting the image as a whole on one axis, useful for fine tuning a slightly twisted or uneven result after basic keystone has done the bulk of the work.
• Lens shift is a physical, optical adjustment where the internal lens element itself moves to reposition the image, with no digital reprocessing and no quality trade off. It's a premium feature generally reserved for higher end projectors like the BenQ LK936ST, and it offers the most genuine mounting flexibility of the three, since it repositions the actual image optically rather than reshaping it digitally.

In practice, most home installs only need vertical and horizontal keystone. Four-corner correction and lens shift become more valuable as your mounting position gets further from ideal, or as your screen gets larger and less forgiving of small misalignments.

Alignment and Setup Features by Model

Beyond raw keystone range, several models include extra features specifically designed to make setup faster and more forgiving. Here is how the current BenQ and Optoma golf simulator projectors compare on alignment:

Alignment specifications vary by model and can change with firmware or revisions. Confirm the current spec on the manufacturer's product page before you buy. If your room has any obstruction that might push your mounting position off-centre, this is the list worth checking against before you buy, not just the base price.

Why This Matters More Than You'd Think in a Real Room

On paper, it's tempting to assume you'll simply mount the projector dead-centre above the hitting area and never need horizontal correction. In practice, real rooms rarely cooperate. Ceiling joists, downlights, smoke detectors, ceiling fans, door swing clearance, and existing electrical points frequently force the ideal mounting position off to one side of centre. Garages in particular, often repurposed for a simulator build, tend to have exactly this kind of obstruction.

If the projector you've bought only offers vertical keystone, an off centre mount isn't something you can correct your way out of. You're left choosing between a compromised, skewed image or a more expensive relocation of the obstruction itself.

The Budget Trap: Why Cheaper Projectors Restrict Your Mounting Position

This is worth calling out directly, because it's an easy detail to miss when comparing prices rather than full spec sheets: the two most affordable golf simulator projectors on the market, the Optoma GT1080HDR and BenQ TH671ST, only offer vertical keystone correction, with no horizontal, four-corner, or lens shift correction at all.

In practice, this means the projector must be mounted directly in line with the centre of your screen, left to right. You retain the ability to angle it up or down and still square up the image, but any side-to-side offset will leave you with a visibly distorted picture that can't be corrected.

This isn't a flaw exactly, it's a deliberate cost saving trade off that keeps entry level projectors affordable, and for a room with a clean, obstruction free, centred mounting position, it's a complete non issue. But if you already know your room has a ceiling obstruction, an angled bay, or any other reason your projector might need to sit off centre, it's worth checking this spec specifically before you buy, rather than after your enclosure is already built.

Manufacturer Projection Calculators: BenQ vs Optoma

Both brands publish a free online calculator to help estimate mounting distance and image size before you buy, but they're not quite equivalent.

BenQ's Golf Simulator Planner (golfsimplanner.benq.com) is purpose-built specifically for golf simulator installs. It's linked directly from every BenQ golf simulator projector's product page and is designed around simulator bay dimensions and impact screen sizing from the ground up.

Optoma's Projection Calculator (optoma.com/projectioncalculator), by contrast, is a general-purpose tool built for home theatre and business projection, not simulator installs specifically. On Optoma's own golf simulator product pages, the recommended workaround is to select a legacy reference model, choose a 4:3 aspect ratio, and manually enter your room dimensions to approximate a simulator setup, which works, but takes an extra step or two compared to a tool designed for the job.

Either calculator is a genuinely useful starting point for roughly planning your mount before you buy. Just don't treat the result as final. As covered below, most installs still need a physical fine tuning pass once the projector is actually up and running.

Getting Your Screen Sizing Exact: Custom Resolution with Nvidia Control Panel

Even with the right throw ratio, keystone, and a manufacturer calculator result in hand, most golf simulator installs still need one more fine tuning step to get the image lining up exactly with the edges of your impact screen, particularly the width. Screens, lens variance between individual units, and small mounting differences all mean the calculator's number is a very good starting point, not a guarantee.

If you're running an Nvidia graphics card, the cleanest way to nail this is by creating a custom resolution. Here's the process:

1. Centre the lens to the screen, not the projector housing. On most short throw projectors, the lens itself sits off centre within the projector body, so don't use the housing as your reference point when mounting. Find the actual lens position and centre that to your screen.
2. Find your mounting height. Temporarily hold the projector up at the height of the top of your impact screen while it's still plugged in and powered on. Once the image height lines up with the top of the screen, that's your mounting height, even though the sides of the image will likely still be too wide at this point. That gets fixed in the next steps.
3. Adjust your Windows display scaling. Right click the desktop, select Display Settings, choose the projector screen, and change Scale to 150%. This just makes the edges of the image easier to see clearly while you're fine-tuning, and can be changed back afterward.
4. Open Nvidia Control Panel and create a custom resolution. Right click the desktop, select Show More Options, then Nvidia Control Panel. Select the projector display, go to Customise, and tick "Enable resolutions not exposed by the display." Then select Create Custom Resolution. From here, gradually reduce the horizontal pixel count and press Test after each change to check the result against your screen. Keep testing and adjusting until the sides of the image line up exactly with the edges of your impact screen, then tick the custom resolution, click OK, and apply the changes.

Once you're happy with the result, you can set your display scaling back to your preferred everyday setting, the 150% in step 3 was only there to make the edges easier to judge during setup.

If you're on an AMD graphics card rather than Nvidia, look for the equivalent option under AMD Software: Adjust Desktop Size & Position, or Custom Resolutions, the underlying idea (manually reducing the output resolution until the image matches your screen exactly) is the same.

Planning Your Mount Before You Buy

A few practical steps before committing to a projector:

1. Measure your available bay depth and work out roughly what image width you're aiming for, then check which throw ratios will realistically fit.
2. Look up (or physically check) your ceiling for joists, lights, fans, or other obstructions in the position you're planning to mount.
3. Decide whether you'll need an off centre mount. If the answer is yes, or even "possibly," prioritise a model with horizontal keystone, four corner correction, or lens shift, over saving money on an entry-level unit.
4. Run the manufacturer's official calculator with your specific numbers as a starting point, then fine tune the actual mounting height and image width once the projector is up, using the Nvidia Control Panel method above if needed.

For help thinking through resolution alongside these installation factors, see our guide on 4K vs HD Golf Simulator Projectors. To compare throw ratio and keystone specs across specific models side by side, our BenQ vs Optoma Golf Simulator Projector Comparison covers nine current options in full detail.

Frequently Asked Questions

What is a good throw ratio for a golf simulator?

Most golf simulator projectors sit between roughly 0.49:1 and 0.9:1. The right figure for you depends on your bay depth and desired image width, lower throw ratios suit shorter bays, while a slightly higher throw ratio needs more depth for the same image size.

What's the difference between vertical and horizontal keystone?

Vertical keystone corrects for a projector mounted too high or too low relative to the screen. Horizontal keystone corrects for a projector mounted off to one side rather than centred. Most projectors include vertical keystone by default; horizontal keystone is not universal, particularly on entry level models.

What is four-corner correction, and do I need it?

Four-corner correction lets you adjust each corner of the image independently, rather than the whole image on one axis like standard keystone. It's useful for fine-tuning a twisted or unevenly mounted image after basic keystone has done most of the work. It's not essential for a straightforward, centred install, but is a genuinely useful extra on models like the Optoma ZK431ST, Optoma GT2160HDR, and BenQ LH830ST if your mounting position is imperfect.

Can I mount a projector off to the side of my screen?

Only if it has horizontal keystone, four-corner correction, or lens shift. Without at least one of these, an off centre mount will produce a distorted, trapezoid-shaped image that can't be corrected.

Does keystone correction reduce image quality?

At small correction angles, the difference is negligible. At more extreme angles, digital keystone or four-corner correction can introduce a very slight softening since they're electronically reshaping the image. Lens shift, being a purely optical adjustment, avoids this trade-off entirely, which is why it's considered the premium option.

Does BenQ or Optoma have a better projection calculator for golf simulators?

BenQ's Golf Simulator Planner is purpose-built for simulator installs specifically. Optoma's Projection Calculator is a general-purpose tool that requires a manual workaround (selecting a legacy reference model and a 4:3 aspect ratio) to approximate a golf simulator setup. Both are useful starting points, but BenQ's is more directly tailored to the job.

How do I get my projector image to line up exactly with my impact screen?

After using the manufacturer's calculator and mounting the projector at roughly the right height and distance, most installs benefit from a final fine-tuning pass using a custom resolution created in Nvidia Control Panel (or the equivalent tool on AMD graphics cards), which lets you reduce the horizontal pixel count in small increments until the image matches your screen edges exactly. Full steps are covered above.

Need a Hand Planning Your Projector Mount?

Browse our full range of golf simulator projectors at Aussie Golf Sims, or get in touch with your room dimensions and we'll help you work out throw distance, keystone, and calculator requirements before you buy.

Because the best projector is the one that actually fits your room.

Happy golfing!
